┃产品描述
┃ Product Descriptions

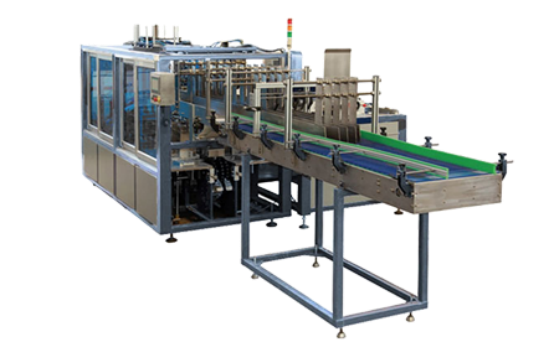

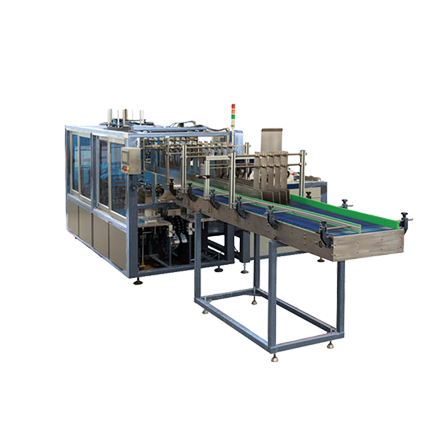

本机选用了世界领先水平的德国西门子控制系统,拥有领先的控制理念,强大的系统兼容性,高速的总线通讯速率,广泛的通讯协议支持,高精度的伺服同步控制。通讯接口齐全,具有很强的系统扩展能力、组网能力及很好的开放性。结构更加科学合理,更加人性化,更便于操作,所包装的产品质量稳定,生产量显著提高。
This machine adopts the world leading Siemens control system from Germany, with advanced control concepts, strong system compatibility, high-speed bus communication speed, extensive communication protocol support, and high-precision servo synchronization control. The communication interface is complete, with strong system expansion capability, networking capability, and good openness. The structure is more scientific and reasonable, more user-friendly, and easier to operate. The quality of the packaged products is stable, and the production volume has significantly increased.
┃产品详情
┃ Product Details
生产能力: | 15-20箱/分钟 |
额定功率: | 15KW |
电源: | 三相380V/50HZ |
控制电源: | 24VDC |
压缩空气: | 1500L/min 0.6-0.8Mpa |
熔体胶粘剂固化时间: | 1.5-2s |
机器重量: | 4000Kg |
机器外形尺寸: | 6285*2582*2115mm |
瓶子尺寸: | 3000*620*1200mm |
产品包装规格: | 200-600ml 4*6 750-2500ml 3*4 2*3 |
Production Capacity: | 15-20 boxes/minute |
Rated Power: | 15KW |
Power Supply: | three-phase 380V/50HZ |
Control Power Supply: | 24VDC |
Compressed Air: | 1500L/min 0.6-0.8Mpa |
Curing Time Of Melt Adhesive: | 1.5-2s |
Machine Weight: | 4000Kg |
Machine Dimensions: | 6285*2582*2115mm |
Bottle Size: | 3000*620*1200mm |
Product Packaging Specifications: | 200-600ml 4*6 750-2500ml 3*4 2*3 |
┃包装效果展示
┃ Packaging Effect Display

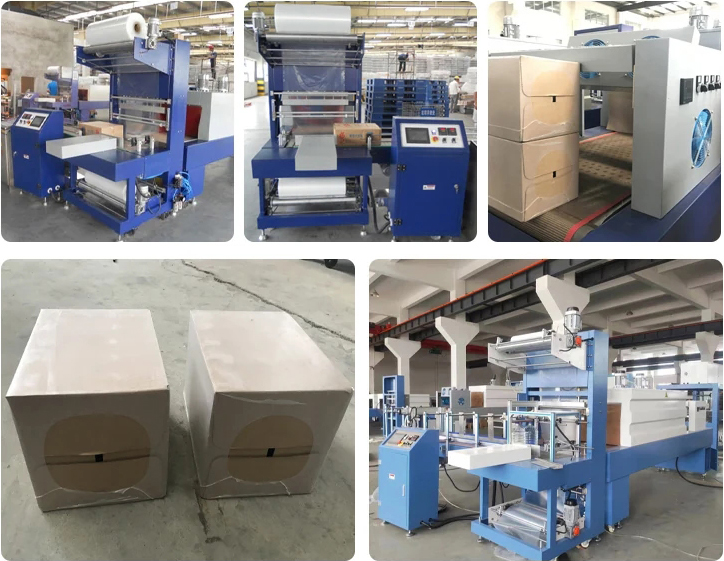

┃车间实拍
┃ Workshop Shooting
┃关于我们
┃ About us
我们是一家专业从事热收缩包装机、纸箱套标机、贴标机、码垛机、输送包装机、线等食品饮料调味品日化用品的后道包装机械专业制造商。先进的设计理念,可靠的质量服务,完善的管理制度,赢得了众多客户的赞许,“努力超越,追求卓越”是我们的不懈追求,“优质产品,星级服务”是我们对客户的承诺。
We are a professional manufacturer of heat-shrinkable packaging machine, Carton Packaging Machine, labeling machine, labeling machine, palletizer, conveyor line, etc..Advanced design concept, reliable quality service, perfect management system, has won the approval of many customers, "Strive to exceed, the pursuit of excellence” is our unremitting pursuit,"Quality products, star service” is our commitment to customers.
